DIRECT PHASE MODULATION OF MICROWAVE CARRIER. FERROELECTRIC PHASE-MODULATORS

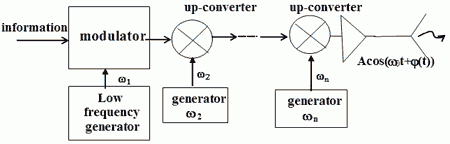

Traditional circuit

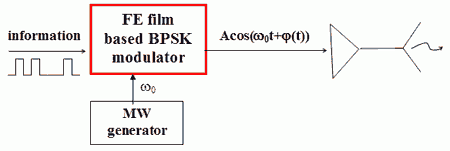

Direct phase modulation circuit

Ferroelectric film - based fin-line as a phase-modulator
(BPSK (bi-phase shift keying) regime 0-180 deg)

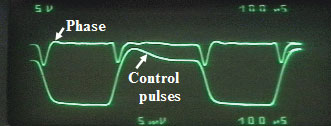

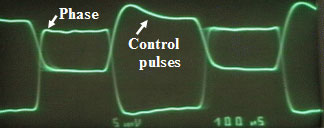

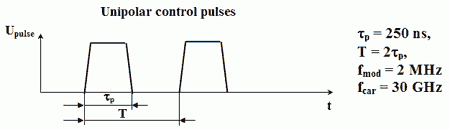

Measurements of switching time

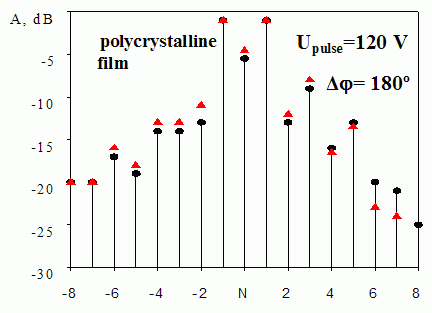

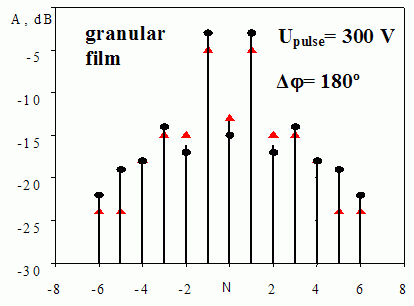

Spectrum of the output signal of ferroelectric modulators
