TUNABLE DELAY LINES AND PHASE SHIFTERS

Tunable phase shifters

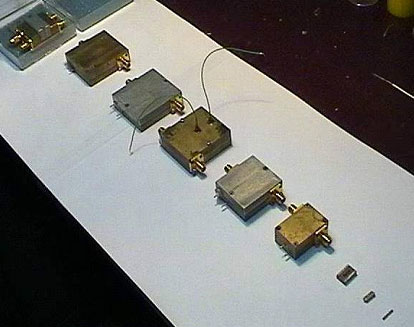

Ferroelectric phase shifters for different frequency subranges
from 2 GHz to 70 GHz

Phased Array Module for control the phase and amplitude of microwave signal

6-bit phase shifter           4-bit attenuator

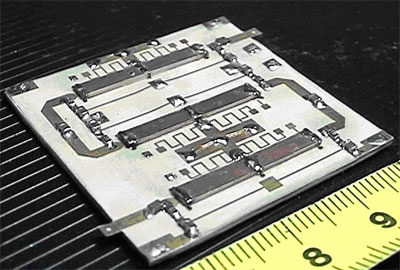

4-channel plate (top view)


Radical decrease of sizes due to the LTCC technology

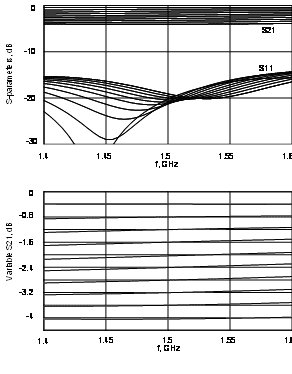

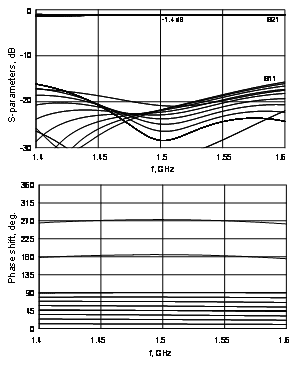

Frequency characteristics of the phase shifter and the attenuator of the module

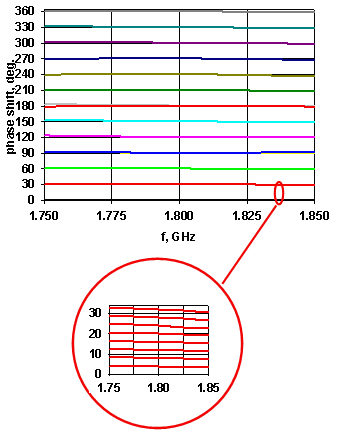

L/S band ferroelectric 3-cascade digital-analog phase shifter

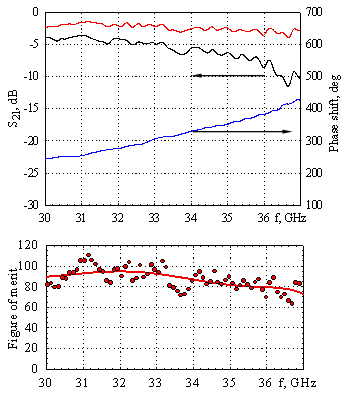

Ka-band phase shifter on the base of slot-line periodically loaded by ferroelectric elements

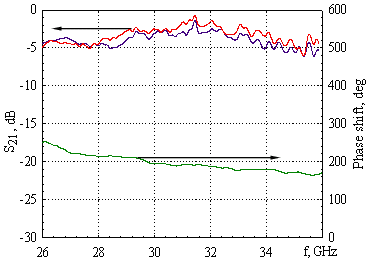

Ka-band phase shifter on the base of microstrip line periodically loaded by ferroelectric elements

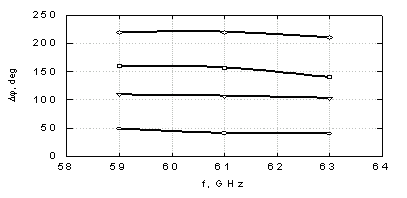

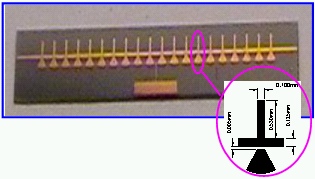

V-band microstrip phase shifter utilizing ferroelectric film


Tunable delay lines

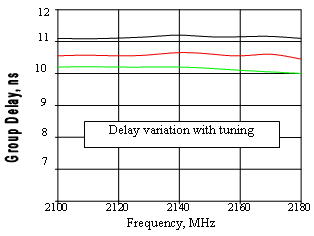

S-Band tunable delay line
